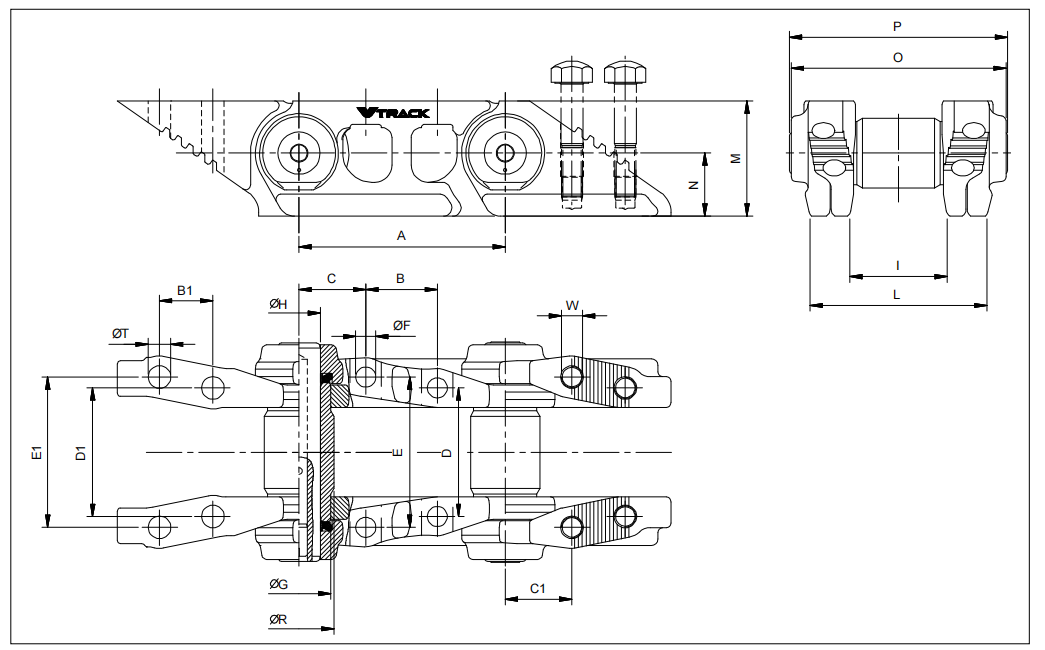

| A | B | C | B1 |
| 260.4 | 80 | 83 | 80 |
| C1 | N | M | D |
| 83 | 105 | 181 | 190 |
| E | D1 | E1 | L |
| 250 | 190 | 250 | 293.4 |
| I | ØR | ØH | ØG |
| 136 | 95 | 57.25 | 90.43 |
| ØF | ØT | P | W |
| 29.5 | 30 | 316 | 1+1/8″-12UNF |
VG0110N044

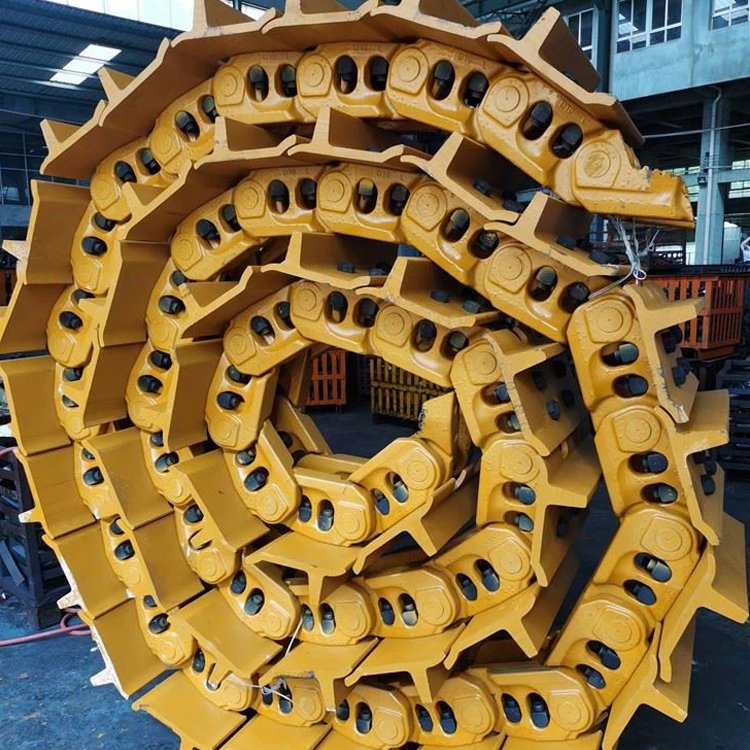

TRACK CHAIN SALT P.P.R. TYPE
COMPATIBLE WITH THE FOLLOWING VEHICLES:
CATERPILLAR
D10N 2YD-1-UP,D10N 3SK-1-UP, D1OR 3KR-1-UP, D1OR AKT-1-UP, D1OT RIG-1-UP
CROSS REFERENCE (ORIGINAL CODES):
BERCO
CR6075/44,CR6100/44
CATERPILLAR
6Y2059,6Y8189,8E7928
ITM
G01100N1M00044,GO1100N1S00044
VPI
VCR6075/44V
